EIGRP Packet Types

EIGRP Packet Types

EIGRP Packet Types: EIGRP has IP Protocol No. 88 and  runs on top of IP and hence is referred to as a Transport layer protocol. The Application layer protocols such as BGP, Telnet, FTP, etc, do not have any inbuilt reliability mechanism and therefore depend on TCP (Protocol No. 6) at the Transport layer to maintain reliability. There are 5 EIGRP Packet Types: Hello, Update, Query, Reply, and ACK. Kindly refer EIGRP Packet Format for more details.

The EIGRP Packets carrying routing control information (i.e. Update, Query, and Reply) are sent reliably because they are not sent periodically, which means that a sequence number is assigned to each reliable packet and an explicit acknowledgment is required for that sequence number.

EIGRP has its own reliability mechanism to acknowledge the receipt of its multiple types of packets and uses Reliable Transport Protocol (RTP) to deliver or exchange packets between the neighbors in a guaranteed and ordered way.

RTP ensures that ongoing communication is maintained between neighboring routers. As such, a re-transmission list is maintained for each neighbor. This list indicates packets not yet acknowledged by a neighbor within the RTO (Round-Trip Timed Out). It is used to track all the reliable packets that were sent but not acknowledged.

Imp Note: If the RTO expires before an ACK packet is received, the EIGRP process transmits another copy of the reliable packet, up to a maximum of 16 times or until the hold time expires.

The following chart explains five EIGRP Packets, their purpose, method of transmission, if sent reliably or not, and OPCode.

EIGRP Packet Types

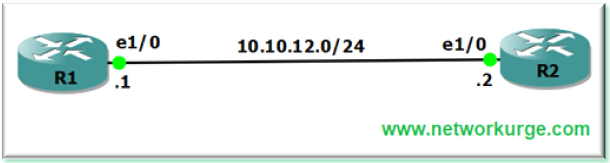

After having a glance of above chart you might have got some idea of EIGRP Packets. Let us now deep dive into more details of each EIGRP Packet using below lab simulation.

EIGRP Packet Types

EIGRP Hello Packet

EIGRP Hello Packet is exchanged for neighbor discovery and sent as multicast.

EIGRP Hello  and Holdown timers

  • For the links with a bandwidth greater than T1(1.544 Mbps) or more, for example, Ethernet, Fast-Ethernet, POS links, Hello packets are sent every 5 seconds and Hold down timer is 15 seconds.
  • For the links with a bandwidth equal to or less than T1, Hello timer is 60 seconds and default hold timer is 180 seconds.
Hello Packets have Acknowledgment number of 0. Both Hello and ACK Packets have Opcode 5.

EIGRP Multicast address is 224.0.0.10. Hello Packets are always sent to a destination multicast IP address 224.0.0.10 reserved for EIGRP.  At Data Link layer, a specific EIGRP destination MAC address (01:00:5e:00:00:0a) is used as shown in the Wireshark capture from Router R2.

EIGRP Hello Packet

Changing EIGRP Hello and Holddown Timers

Also note that default Hello and Hold down timer can be changed using interface configuration commands as given below:

R1(config-if)#ip hello-interval eigrp as-number seconds.
R1(config-if)#ip hold-time eigrp as-number seconds




EIGRP Update Packet

EIGRP Updates Packets are sent as multicast as well unicast as explained below.

When EIGRP Updates Packets are sent as Multicast

EIGRP Updates Packets are sent as multicast when a new route is discovered, a network goes unreachable or any routing change, for example, a metric change happens. To understand this, let us configure a new loopback interface Lo1 (10.10.0.100/32) on R1 and advertise this subnet in EIGRP. We will see that R1 will send an EIGRP Update of this subnet on multicast destination IP address 224.0.0.10  to its neighbor R2. Below is the Wireshark capture of R1 sending an update to R2 on multicast address 224.0.0.10. Update Packets  have OPCode of 1.

EIGRP Update Packet

When EIGRP Updates Packet are sent as Unicast

EIGRP Update Packets are sent as unicast to neighbors when the EIGRP process is restarting. For example, if we reset the EIGRP process on R1 using "clear ip eigrp neighbor" command, R1 and R2 will send the Update Packet to each other as unicast messages on their physical interface IP addresses. R1's physical interface IP address is 10.10.12.1/24 and R2's physical interface IP address is 10.10.12.2/24.

R1#clear ip eigrp neighbors

Below is wireshark capture of R1 sending unicast update to R2.

EIGRP Update Packet


EIGRP Query Packet

EIGRP Query Packet is sent when an EIGRP router doesn't have a Feasible Successor (FS) for a route. The Query Packet is sent to all EIGRP neighbors. This Query Packet is sent as a multicast on a multicast address 224.0.0.10

If the router which has originated the Query Packet does not receive a response/Reply Packet from any of its neighbors, it re-sends the Query as a Unicast packet to the non-responsive neighbor(s). If no response is received in 16 attempts, the EIGRP neighbor relationship is reset with that neighbor.

Query Packets are sent reliably and neighbors reply with EIGRP ACK Packet as soon they receive the Query Packet to confirm the receipt. Query Packets have OPCode of 3.


EIGRP Reply Packet

EIGRP Reply Packet is sent by the neighbors as a response to EIGRP Query Packet. Reply Packet is sent as unicast on physical interface IP address of the neighbor and are sent reliably, meaning that the neighbors reply with EIGRP ACK Packet as soon they receive the Reply Packet to confirm the receipt. Reply Packets have OPCode of 4.


EIGRP ACK Packet

EIGRP ACK Packets are sent unicast as an acknowledgment for receipt of Update, Query, and Reply Packets. EIGRP ACK Packets are Hello Packets with a non-zero Ack number.  Both Ack and Hello Packets have Opcode 5.

EIGRP ACK Packet


We can also see the flow of EIGRP messages by enabling debugging of EIGRP packets as shown below:

R1#debug eigrp packets
(UPDATE, REQUEST, QUERY, REPLY, HELLO, IPXSAP, PROBE, ACK, STUB, SIAQUERY, SIAREPLY)

EIGRP Packet debugging is on

Besides the 5 packets types discussed in this article, EIGRP also sends a new kind of message named EIGRP Goodbye message which is designed to improve EIGRP network convergence and it uses Goodbye message to communicate this information to the neighbors. With graceful shutdown, a goodbye message is broadcast when an EIGRP routing process is shut down, to inform adjacent peers about the impending topology change. This feature allows supporting EIGRP peers to synchronize and recalculate neighbor relationships more efficiently than would occur if the peers discovered the topology change after the hold timer expired. Goodbye messages are sent in EIGRP Hello packets. EIGRP sends an interface goodbye message with all K values set to 255 when taking down all peers on an interface




I hope you have found this article informative and useful and now have a fair understanding of EIGRP Packet Types and how these packets are used for EIGRP communication. For any of the related queries or feedback, kindly write to us at networkurge@gmail.com
